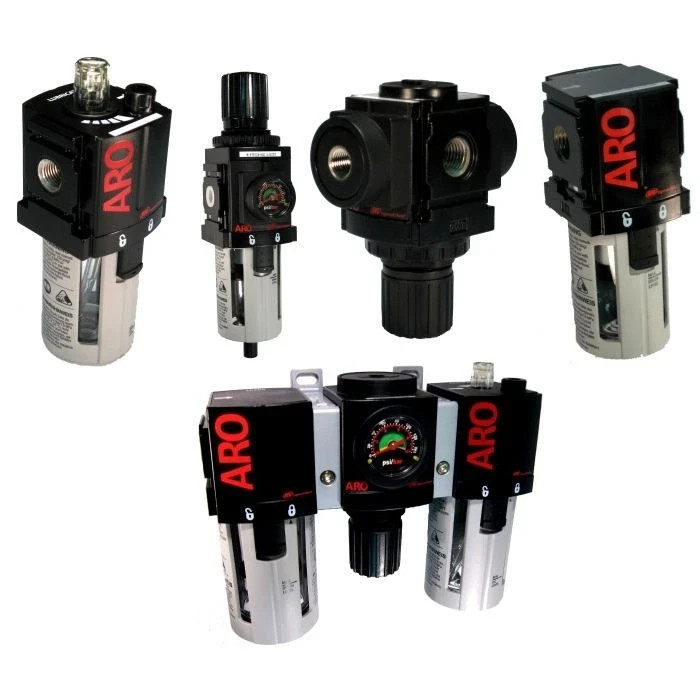

ARO C38341-800 FRL Filter Regulator Lubricator 1/2" NPT Port 150 CFM

ARO C38341-800 3-Piece FRL Combination Unit | 2000 Series | 1/2" Port Size | Relieving | Metal Bowl with Gauge | 150 SCFM

The Aro-Flo Series FRL unit is engineered to manage air line filtration regulation and lubrication seamlessly. This combination unit features 1/2 NPT ports and supports a flow rating of 150 SCFM ensuring efficient air pressure control and contaminant removal.

Constructed from durable polycarbonate with a bowl guard it is built to withstand demanding industrial environments. The automatic drain system enhances convenience by expelling water and sludge.

Designed with modular connectivity it includes a T-bracket wall mount for easy installation. The unit's dimensions are 8.69 inches wide by 7.67 inches high.

Filters in the system are designed to remove solid and liquid contaminants with optional coalescing models available for finer filtration. The regulators provide consistent air pressure adjustable within the 0 140 psig range.

Lubricators ensure your pneumatic devices receive the necessary oil for optimal performance and longevity. This unit delivers a precise oil-to-air ratio maintained by adjustable oil feed settings.

For systems where space is limited the compact piggyback configuration combines filtering and regulating functions adaptable with various filter elements and springs.

Supplier Part Number: C38341-800

Connector TypeModular with T-bracket wall mountContainsF35341-401 R37341-600 R37341-600Dimensions8.69W x 7.67HDrain TypeAutoBrandIngersoll-Rand Special QuotesBrandIngersoll-RandPack Size1.00UOMEAFlow Rating (SCFM)150MaterialsPolycabonate with Bowl GuardPort Size1/2 NPTSeries2000Supplier Part NumberC38341-800Alternate Part NumbersC1KG87, MI-04309398, MINO-00063X88411Product Weight5.30 lbs

ARO C38341-800 FRL Combination Unit: Optimize Performance and Protect Your Compressed Air Tools.

Ensure clean, regulated, and lubricated air for your most critical pneumatic applications with the ARO C38341-800 FRL Combination Unit. This versatile unit combines a high-performance compressed air filter, regulator, and lubricator into a single, modular design, ideal for metalworking, fabrication, assembly lines, and other industrial environments.

Type: FRL Combination Unit | Port Size (in.): 1/2 | Drain Type: Manual | Bowl Type: Metal with Sight Glass | Filter Element: 5 Micron | Filter Bowl Cap (oz.): 2.4 | Lubricator Bowl Capacity (oz.): 3.7 | Spring Ring Options (PSI): 0 - 140 | Maximum Inlet Pressure (PSI): 250 | Temperature Range (F): 23 - 175 | Flow Capacity (SCFM): 150

• Industry-Leading Flow Rates: Maintain peak tool performance without sacrificing air quality.
• Low Leak Rates: Minimize compressed air waste and optimize energy savings.
• All-Modular Design: Easily configure your FRL setup with additional units or accessories using spacer kits for ultimate flexibility.
• Full Line of Accessories: Tailor your FRL to specific needs with locking bowls for safety, a bright, flush-mount gauge with a settable fan for easy monitoring, and various filter options.
• Durable Construction: The C38341-800 is built to last, featuring a robust combination of metal and high-grade plastic materials, ensuring reliable operation in demanding environments.

Protect Your Investment in Compressed Air Tools:

• 5-Micron Standard Filter: Removes contaminants as small as 5 microns, safeguarding pneumatic tools from wear and tear.
• Automatic Drain Option (Available): Eliminates the need for manual condensate removal, preventing corrosion and ensuring consistent performance.
• Compressed Air Lubricator: Provides a controlled mist of oil to lubricate moving parts, extending tool life and reducing friction.

The ARO C38341-800 FRL Combination Unit is the perfect solution for professionals who demand reliable performance and superior protection for their compressed air tools. This ARO air filter regulator lubricator (ARO FRL) ensures optimal compressed air quality for various applications, including metal fabrication, ship repair, assembly lines, oil and gas refineries, and aerospace facilities.
